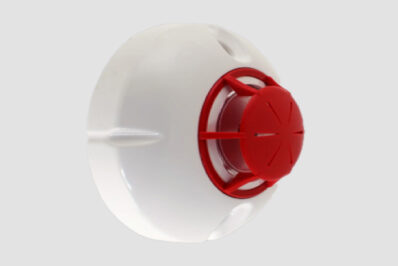

FD7204 is applicable for sound and LED indication of events registered in Interactive Fire Alarm System IFS7000. FD7204 is certified on EN54-3.
Brand: UniPOS
Origin: Bulgaria
FD7204 is applicable for sound and LED indication of events registered in Interactive Fire Alarm System IFS7000.
FD7204 is certified on EN54-3. The FD7204 sounder is connected to the signal loop of the IFS7002 panel, through the custom UniTalk protocol.
FD7204 is certified on EN54-3. The FD7204 sounder is connected to the signal loop of the IFS7002 panel, through the custom UniTalk protocol.
LEDs control:
Duty mode – flash on a period of 16 sec.;
Alarm mode – activated continuous ON;
The flash / activation of the LEDs is programmable from the IFS7002’s menus.
Technical parameters:
Maximum number of sounders in the IFS7002 signal loop: 25 pcs.
Voltage: 15-30V DC
Current: 6mA on 24 V DC (LED mode, “without flash” )
Sound level, type “Slow whoop” on 1m: 90dB (А)
Frequency, pattern “Slow whoop”: 0.5 – 1,2 kHz
Temperature: from minus 10°С to 50°С
Dimensions: Ø100, h47mm
Weight: 0.075kg.
Protection: IP 40
Construction: ABS
