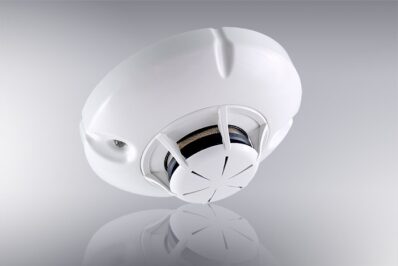

It combines the advantages of a type FD7120 and a type FD7130 and it is an attractive option due to decreased expenses for supply and installation.
The temperature class (A1R, A2R or BR) and the smoke sensitivity (low, middle or high) are programmable by Fire Control Panel IFS7002 and they are in compliance with the European Standard EN54-5 and EN54-7.
Operation: Distraction of light, (The Tindal effect) microprocessor controlled, fixed temperature threshold dependable
Supply voltage: (15-30)VDC
Terminals: For wires with cross section (0.8-2.5)mm2
Degree of protection: IP 43
Operation temperature: Minus 10oC to 55oC
Relative humidity: (93±3) % at 40oC
Sensitivity: In accordance with EN54-7 and EN54-5, class A1R, A2R or BR
Mounting: Using base type 7100
Dimensions (base included): Ø100, h 52 mm
Casing material: ABS plastics, white
Weight (base included): 0.100 kg
Protected area: Circle with diameter 10m, h 8m
