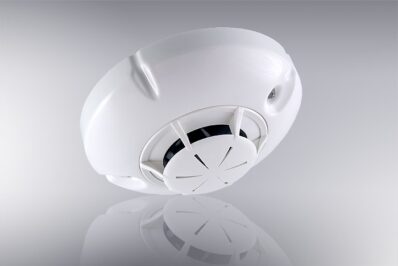

A heat rate of rise heat detector type FD7120 is integrated into module FD7201. The module is power supplied via the signal loop, and up to 5 modules can be connected in each of the loops.
It shall be mounted with base type 7100A. It satisfies the requirements of the European Standard EN54-5, EN54-17 & EN54-18.
Supply voltage: (15-30)VDC
Conventional line voltage: (14-30) VDC
Conventional line current
– Fault condition interruption: (0-2) mA
– Duty mode: (3-13) mA
– Fire condition: (14-50) mA
– Fault condition Short circuit: More than 50 mA
Degree of protection: IP 43
Operation temperature: Minus 10oC to 55oC
Relative humidity: (93±3) % at 40oC
Dimensions (base included): Ø100, h 47 mm
Casing material: ABS plastics, white
Weight (base included): 0.100 kg
