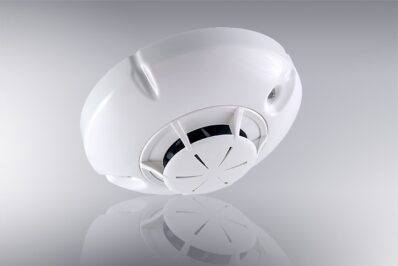

The fire detector provides reliable early warning of Fire condition upon ambient temperature reaching a fixed temperature threshold.
The temperature class (A1S, A2S or BS) is in compliance with the European Standard EN54-5 and is programmable by Fire Control Panel IFS7002.
The temperature class (A1S, A2S or BS) is in compliance with the European Standard EN54-5 and is programmable by Fire Control Panel IFS7002.
Brand: UniPOS
Origin: Bulgaria
The fire detector provides reliable early warning of Fire condition upon ambient temperature reaching a fixed temperature threshold.
The temperature class (A1S, A2S or BS) is in compliance with the European Standard EN54-5 and is programmable by Fire Control Panel IFS7002. The fire detector is suitable for premises with normal and high ambient temperature, with possible sudden changes.
The temperature class (A1S, A2S or BS) is in compliance with the European Standard EN54-5 and is programmable by Fire Control Panel IFS7002. The fire detector is suitable for premises with normal and high ambient temperature, with possible sudden changes.
Technical data
Operation: Microprocessor controlled, fixed temperature threshold dependable
Supply voltage: (15-30)VDC
Terminals: For wires with cross section (0.8-2.5)mm2
Degree of protection: IP 43
Operation temperature: Minus 10oC to 55oC
Relative humidity: (93±3) % at 40oC
Sensitivity: In accordance with EN54-5, class A1S, A2S or BS
Mounting: Using base type 7100
Dimensions (base included): Ø100, h 47 mm
Casing material: ABS plastics, white
Weight (base included): 0.100 kg
Protected area: Circle with diameter 10m, h 8m
