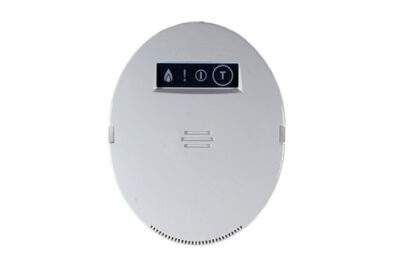

• For detection of compressed natural gas (methane) in the protected area.
  • The status is indicated with LEDs and built-in sounder.
  • EN50194-1 compatible on trigger level 5100 ppm CNG (methane) in air, saturation 10% LEL (Low Explosion Level) of the protected area.
  • The signal loop interface line is compatible with the 7000M fire control panel.

Brand: UniPOS
Origin: Bulgaria

Technical data

Maximum number detectors in the 7000M signal loop:    210 pcs.

Supply voltage :

Loop:                                                 (15-30) VDC

Current consumption in Duty mode:

Loop:                                               < 350μA /24VDC

Current consumption in Alarm mode:

Loop:                                               (2±1)mA /24VDC

CNG trigger level:                              5100ppm in air (10% LEL)

Dimensions:                                       134 mm x 36 mm x 112 mm

Weight:                                               115 gr

Ingress protection:                              IPX2D

Sound level:                                        100 dB at 1m

Operation temperature range:               -5°С to +40°С

Relative humidity (without condensation):   ≤ 95
