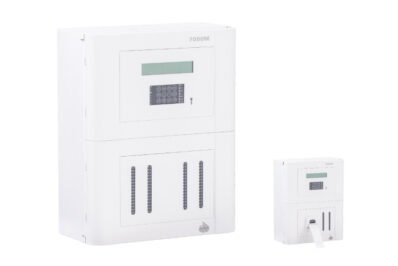

- Installation procedure
- Set-up flexibility
- New requirements implementation
- Fully compatible with the EN54 standard
Brand: UniPOS
Origin: Bulgaria
PSU;
Base module;
Loop module;
BIO;
Zone indication
32/64 zone
Printer (optional)
Power Supply Module -7000M
- current consumption at 230VAC – 0,8A
- current consumption at 120VAC – 1,6A
- cable connection – min 1,5mm²
- mains power fuse – 4A
Batteries:
capacity of batteries – 26Ah/12V
number of batteries – 2pcs
maximum internal resistance battery – 80mΩ
Base Module -7000M
- Base DIN module is mandatory for panel 7000M. Each panel includes only one module. Module is always installed on the first position of DIN rail, next to the Power supply module. Base DIN module is directly power supplied over connector.
- Module includes detachable and standard connectors for interface connection:
- redundant CAN 2.0B connection to other 7000M panels – up to 16 panels per system.
- RS485 for connection with Panel repeaters or Zone indication led board extenders;
- USB host – Upload/Download panel configuration and update panel firmware (requires Access level 3);
- connector – for connection with printer.
- Ethernet LAN port – for connection to Intellect BMS software connection or remote diagnostic access.
Loop Module -7000M
| • Connecting type: | – | DIN rail |
| • Connecting line to loop: | – | two-wire shielded |
| • Loops per module | – | 2 pcs. |
| • Modules per panel | – | max – 5 pcs. min -1 pcs. |
| • Maximum resistance of a loop | – | at 210 devices and 2 100 m distance) “-” wire) – 28Ω “+” wire) – 60Ω |
| •Maximum Loop Consumption | – | 300mA/24VDC |
| • Power supply (ensured by PSU module) | – | 27,6 +1/-8 VDC |
BIO Module -7000M
| • RELAY OUTPUTS | – | 2pcs |
| Type | – | potential free, trigger switch |
| Electrical characteristics | – | 0,5A/125VAC; 1A/30VDC |
| • MONITORED OUTPUTS | – | 2pcs |
| Type | – | potential |
| Electrical characteristics | – | (27,6 +1/-8)VDC/0,7A |
| • MONITORED INPUTS | – | 2pcs |
| • USER POWER SUPPLY OUTPUTS | – | 1pcs |
| Type | – | potential |
| Electrical characteristics | – | (27,6 +1/-8)VDC/0,7A |
Repeater
Modular system – can be consist of:
– only display and keyboard panel
– only led indicator panel
– or combination of above two
| Connecting type: | – | two pair, shielded twisted pair |
| Communication interface | – | RS485 |
| Max. Repeaters per system | – | 15pcs |
| Current Consumption | – | 50mA/27,5VDC |
| Connection distance | – | max 1000m between first and last panel |
| Power supply | – | 21.5VDC28VDC |
Printer (optional) – 7000М
Printable data:
- Faults events
- Alarm Events
- Event log data
Additional information
| Technical Data | ● Delay to outputs, Day/Night mode |
|---|
