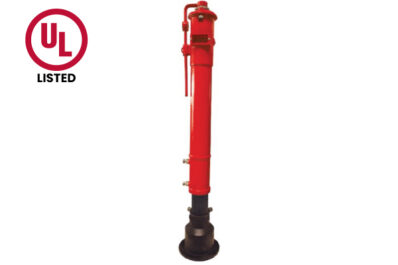

Technical Specifications:
- Unload the upper cover of control lead
- Measure control lead remove the excess part of connector lead and driving rod
- Fit the control rod with full closed valve.turn the position Plate to SHUT position
- Load upper cover
ÂÂ | Name | Material | REMARK |
1 | Handle | DI | ASTMA536 |
2 | Driving Rod | S.S.304 | ASTMA276 |
 3 | Indicator Cover | Cl | ASTMA126 |
 4 | Housing | Cl | ASTMA126 |
 5 | Keyhole Plate | A283 Gr.C | ASTM A36 |
 6 | Indicator Plate | A413.0 | ASTM S12A |
 7 | Screwed Plug | 1035 | ASTM A449 |
 8 | Extension Rod | A283 Gr.C | ASTMA36 |
 9 | Flange | Cl | ASTMA126 |
10 | Connecting Rod | 1045 | ASTMA29 |
 11 | Cotter Pin | 1035 | ASTM A449 |
12 | Joint | Cl | ASTMA126 |
 13 | Bolt | 1035 | ASTMA449 |
14 | Bolt | 1035 | ASTM A449 |
 15 | Bolt | 1035 | ASTMA449 |
 16 | Driving Nut | S.S.304 | ASTMA276 |
 17 | Keyhole Plate Gasket | EPDM | ASTM D2000 |
